Steel Cylinder Scale - Product Introduction
Product Overview

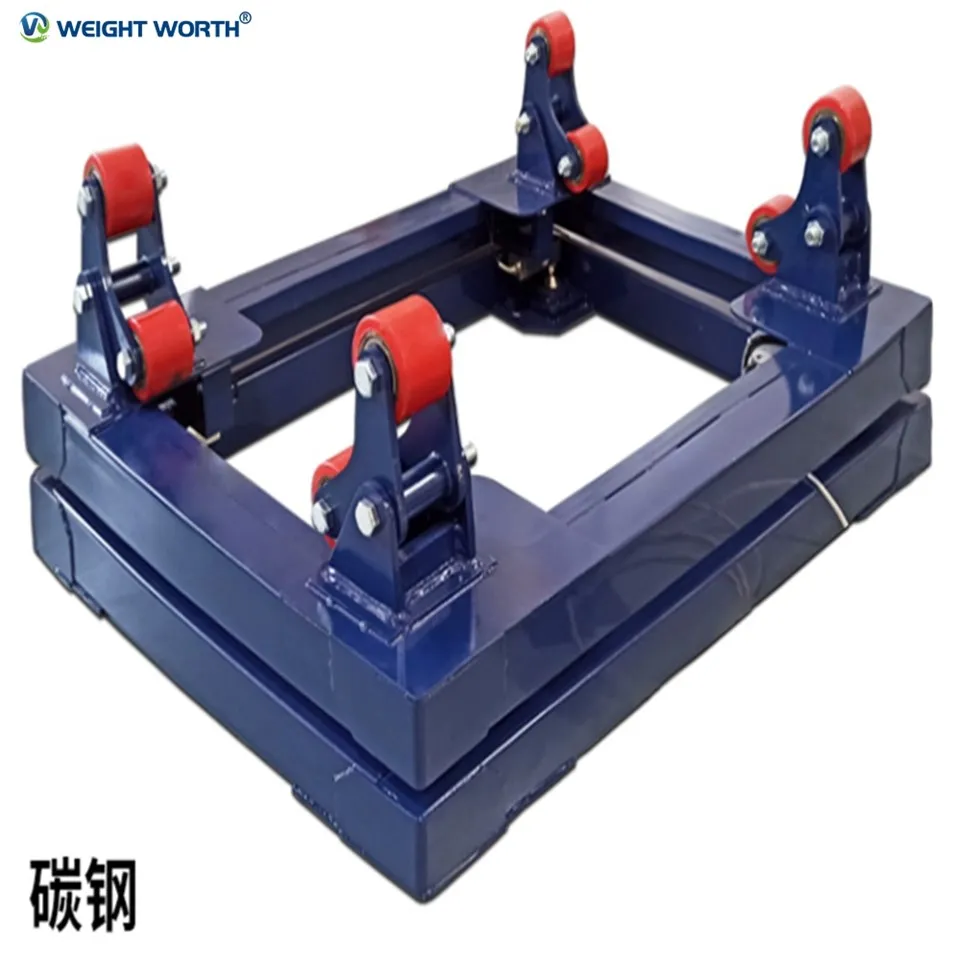

The steel cylinder scale is an industrial weighing equipment specially designed for cylindrical steel cylinders and gas storage tanks. It is suitable for the metering of various gas cylinders such as liquid chlorine, liquid ammonia, carbon dioxide, propane and medical oxygen.
Adopting an integrated frame structure and high-precision weighing sensor system, the equipment is tailored for harsh industrial environments with outstanding weighing accuracy, structural stability and operational safety. It accurately completes cylinder filling measurement, inventory checking, residual gas detection and over-limit alarm.
Widely applied in chemical, gas, medical, food, sewage treatment and laboratory industries, it serves as core weighing equipment for the production, transportation and management of bottled gas.
Core Structural Design
2.1 Sturdy and Pressure-resistant Scale Body
The whole machine adopts a thickened profile welded frame with two optional materials: carbon steel with plastic spraying and 304 stainless steel. The carbon steel version undergoes sandblasting and anti-corrosion painting for wear resistance, scratch resistance and oxidation resistance.
The stainless steel version adopts polished wire drawing technology, featuring waterproof and anti-corrosion performance for humid and corrosive working conditions. The double-layer platform and three-beam structure provide stronger anti-eccentric load and anti-torsion capacity than traditional double-beam structures, ensuring uniform pressure distribution, no deformation under long-term heavy load and no measurement error drift.
2.2 Humanized Cylinder Bearing Mechanism
The scale platform is equipped with a V-shaped adaptive bracket to fix cylinders of different diameters and prevent tipping and slipping. It adopts high-strength nylon pulley brackets and composite spring buffer devices to reduce impact force during cylinder placement, protecting sensors and the scale body.
The rotatable cylinder design facilitates pipeline connection and reduces manual operation difficulty. Some models are equipped with a leakage collection tray to contain leaked liquid and avoid corrosion to equipment and ground for easier maintenance.
2.3 Protected Sensor Layout
High-precision shear beam load cells are embedded between the upper and lower scale platforms to avoid direct erosion from liquid, dust and corrosive gas. With sealed packaging, the sensor features strong overload resistance, anti-interference and anti-vibration performance, ensuring stable weighing data in complex industrial environments.
29,000+ experts worldwide
Senior project managers effectively control all aspects of the project
7x24 hours delivery
Located in 27 cities around the world,with 50 delivery centers,providing 200+ languages,7x24 hours delivery capacity,is the best partner for enterprise globalization
834M
Total Freelancer
732M
Positive Review
90M
Order recieved
236M
Projects Completed
Core Product Functions
3.1 High-precision and Stable Weighing
The weighing range covers 500kg to 3000kg with customizable specifications. It delivers high precision and clear division value to capture tiny residual gas changes, meeting refined measurement requirements such as quantitative filling, residual quantity inspection and loss statistics. The intelligent weighing instrument adopts a digital filtering algorithm to resist on-site vibration and airflow interference, ensuring real-time and stable data display without fluctuation.
3.2 Diversified Intelligent Expansion
Over-limit Alarm: Adjustable weight upper and lower limits with sound-light alarm for overfilling and insufficient gas to avoid unqualified filling and empty cylinder omission.
Data Printing: Built-in high-speed thermal printer supports one-click ticket output for data recording, account management and traceability.
Explosion-proof Configuration: Intrinsically safe explosion-proof models are available with qualified explosion-proof grade, suitable for flammable and explosive gas filling workshops and chemical explosion-proof factories.
Data Transmission: Supports RS485, Bluetooth and wireless transmission to connect with industrial control systems and computers for remote viewing and batch data export.
3.3 Simple Operation and Long Durability
Equipped with an intelligent digital display meter with a high-definition backlit screen for use in dark environments. It supports tare, zero reset, accumulation and data locking with zero learning difficulty. The machine has few vulnerable parts and requires low maintenance. It is waterproof, dustproof and easy to clean for a long service life. Fixed and mobile types are optional; the mobile version is fitted with anti-slip casters for flexible movement and multi-station switching.
Basic Technical Parameters (Standard Model)
|
Parameter Item |
Technical Index |
|
Standard Range |
500kg/1000kg/2000kg/3000kg |
|
Weighing Accuracy |
±0.1%FS |
|
Scale Material
|
Carbon Steel Anti-corrosion / 304 Stainless Steel |
|
Protection Grade |
IP65 |
|
Working Temperature |
-20℃~+60℃ |
|
Power Supply |
AC Power / Storage Battery |
- Description
- Specifications
- Features
- Applications
FAQ
Everything You Need to Know
'lt is awesome to work with Creative. amazingy organized,easy to communicate with. responsive with next iterations,and beautiful work.
What advantages does the sensor material have?
A: The sensors are made of 304 stainless steel, which is corrosion and rust resistant for enhanced durability.
How is the fatigue resistance of the sensors?
A: The sensors can withstand 2 million fatigue tests, maintaining stable performance without deterioration during long-term use.
What protective design is applied to the cables?
A: Metal-protected cables are used to prevent damage from rat bites and insect infestation, reducing the risk of malfunctions.
Is the weighing system stable and easy to upgrade?
A: Our independently developed intelligent weighing system features stable operation and convenient later upgrade and maintenance.
