Qingdao Weight Worth Automation Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of portable weighing beams scale in China, also supports customized service. Welcome to buy high-grade portable weighing beams scale for sale here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.
Products Description
Product Overview

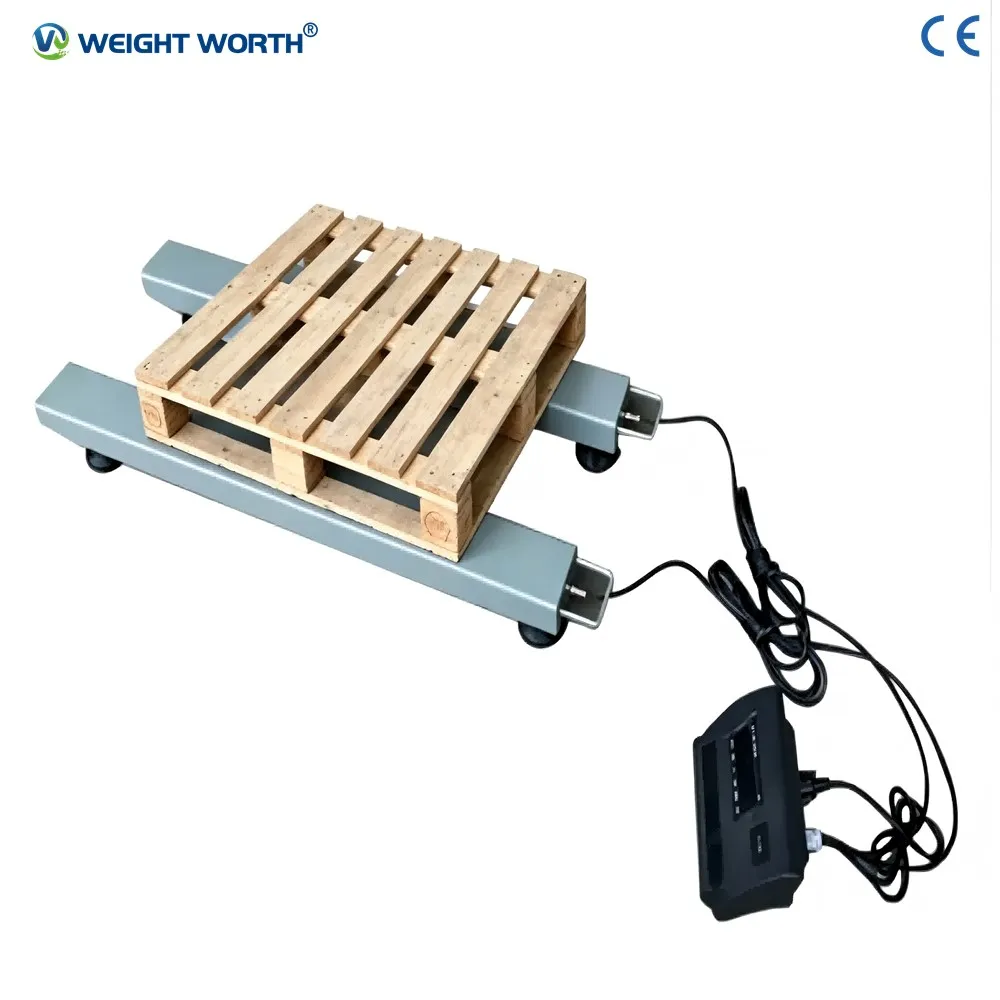

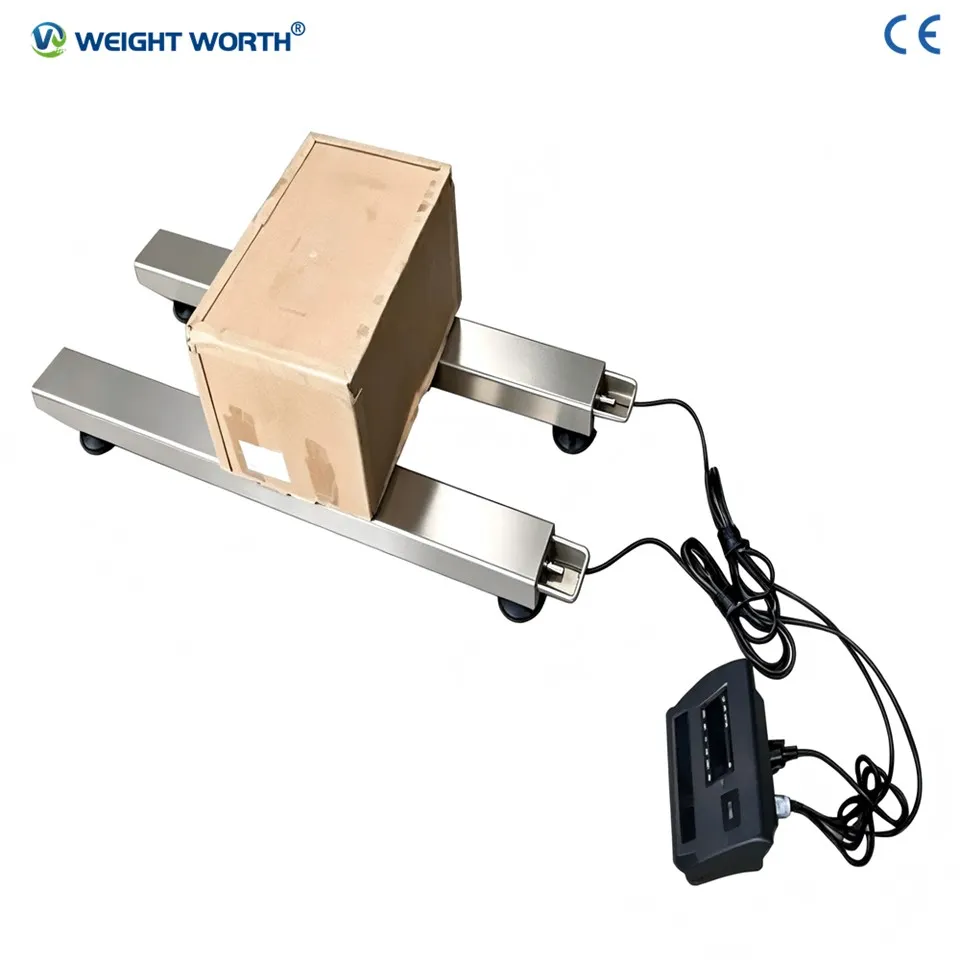

The WEIGHTWORTH Portable Weighing Beams Scale is a split-type weighing device specially designed for pallets, rolls, and long-shaped goods. Featuring two independent parallel scale platforms, it has an extremely simple structure that requires no foundation pits or ramps. Forklifts, pallet trucks, or cranes can directly place goods on it for weighing.
Focusing on industrial-grade durability and high precision, it also has strong scene adaptability, making it an ideal choice for efficient weighing in warehousing and logistics, manufacturing, metal processing, textile and other industries.
Key Technical Parameters
| Item | Specifications |
|---|---|
| Brand | WEIGHTWORTH |
| Product Name | Bar Electronic Scale (Split-Type Platform Scale) |
| Rated Capacity | 1t / 2t / 3t / 5t / 10t (Customizable) |
| Division Value | 0.2kg / 0.5kg / 1kg / 2kg |
| Single Bar Size | 1200×120mm / 1500×150mm / 2000×150mm (Customizable) |
| Load Cell Type | Alloy Steel Shear Beam Load Cells (4 pcs per set) |
| Accuracy Class | OIML Class III |
| Indicator | High-precision LED/LCD Display Indicator |
| Power Supply | Built-in Battery + AC220V Dual Power Supply |
| Communication Interface | RS232/RS485, USB, Bluetooth/Wireless (Optional) |
| Platform Material | Q235 Carbon Steel with Spray Coating (Stainless Steel 304 Optional) |
| Protection Grade | Load Cell IP67 |
| Working Temperature | -10℃ ~ +45℃ |
Core Advantages ✨
- Split Bar Design, Full Scene Adaptability:The two independent scale platforms can be flexibly adjusted in spacing, perfectly fitting standard pallets, rolls, pipes, and long-shaped workpieces. Whether weighing palletized goods directly or cross-placing extra-long/irregular goods, it can easily handle, solving the pain point of fixed size of traditional platform scales.
- High-Strength Steel Structure, Industrial Durability:Made of thickened Q235 carbon steel, formed in one piece, with shot blasting and anti-corrosion spray coating, it is impact-resistant, wear-resistant, and not easily deformed. Anti-slip feet at the bottom of the scale platform can effectively buffer the impact of forklift operations, extending the service life of the equipment, and easily coping with high-frequency and high-load industrial working environments.
- High-Precision Weighing, Stable and Reliable Data:Equipped with WEIGHTWORTH customized high-precision shear beam load cells, combined with intelligent digital filtering and anti-interference algorithm, it effectively filters the impact of forklift vibration and uneven ground, ensuring accurate and stable weighing data, meeting the strict requirements of trade settlement, inventory counting, and production control.
- Zero Installation Threshold, Flexible and Efficient Movement:No foundation pits or ramps required, just place and use. The overall structure is lightweight, and a single scale bar can be easily carried. The position and spacing can be adjusted at any time according to operational needs, greatly reducing site renovation costs, especially suitable for temporary weighing and multi-site turnover scenarios.
- Modular Design, Convenient Maintenance and Low Cost:The split structure means that the failure of one scale bar does not affect the use of the other, making maintenance more convenient. The load cells are fully sealed for waterproof and dustproof design, requiring only simple cleaning daily, resulting in extremely low long-term maintenance costs.
- Description
- Specifications
- Features
- Applications
Common Applications
• Warehousing & Logistics: In/out weighing of palletized goods, inventory counting, no additional ramps required, doubling forklift operation efficiency.
• Metal Processing: Weighing of pipes, profiles, steel, and coils, adapting to the weighing needs of extra-long/irregular workpieces.
• Textile & Paper Industry: Weighing of paper rolls, fabric rolls, and chemical fiber rolls, cross-placed weighing without damaging goods.
• Manufacturing Production: Weighing of large parts, long-shaped semi-finished/finished products, adapting to production line turnover and quality inspection.
• Livestock Breeding: Weighing of live pigs, cattle, and other livestock, the split structure adapts to livestock channels, reducing stress response.
FAQ Why Choose WEIGHTWORTH Portable Weighing Beams Scale?
A: The core advantage of the Portable Weighing Beams Scale is split-type flexible adaptability. Compared with U-shaped scales, it can freely adjust the spacing of the two scale bars to adapt to extra-long/irregular goods such as coils and pipes; compared with traditional platform scales, it has lower installation and use thresholds, stronger mobility, and solves the problem of difficult handling of large-size platform scales.
A: Yes! WEIGHTWORTH bar scales support customizing different single bar lengths and adapted spacing according to your cargo size and pallet specifications, and also support fine-tuning the spacing on site according to needs to adapt to more scenarios.
A: All WEIGHTWORTH bar scales come with a 1-year Whole machine warranty, and core load cells have a 3-year warranty. We also provide 7×24 hours technical support and fast after-sales response, so you can enjoy timely service support no matter where you are in the world.
